Toro Heavy Duty 21 in. Kohler CV173 Self-Propel 2-Bail Variable Speed Zone Start

Red • New Lawn Mowers

Toro Heavy Duty 21 in. Kohler CV173 Self-Propel 2-Bail Variable Speed Zone Start in Mio, Michigan - Photo 1
Toro Heavy Duty 21 in. Kohler CV173 Self-Propel 2-Bail Variable Speed Zone Start in Mio, Michigan - Photo 2
Toro Heavy Duty 21 in. Kohler CV173 Self-Propel 2-Bail Variable Speed Zone Start in Mio, Michigan - Photo 3
Toro Heavy Duty 21 in. Kohler CV173 Self-Propel 2-Bail Variable Speed Zone Start in Mio, Michigan - Photo 4
Toro Heavy Duty 21 in. Kohler CV173 Self-Propel 2-Bail Variable Speed Zone Start in Mio, Michigan - Photo 5
Toro Heavy Duty 21 in. Kohler CV173 Self-Propel 2-Bail Variable Speed Zone Start in Mio, Michigan - Photo 6
Toro Heavy Duty 21 in. Kohler CV173 Self-Propel 2-Bail Variable Speed Zone Start in Mio, Michigan - Photo 7
Toro Heavy Duty 21 in. Kohler CV173 Self-Propel 2-Bail Variable Speed Zone Start in Mio, Michigan - Photo 8
Toro Heavy Duty 21 in. Kohler CV173 Self-Propel 2-Bail Variable Speed Zone Start in Mio, Michigan - Photo 9
Toro Heavy Duty 21 in. Kohler CV173 Self-Propel 2-Bail Variable Speed Zone Start in Mio, Michigan - Photo 10
Previous
Next
Toro Heavy Duty 21 in. Kohler CV173 Self-Propel 2-Bail Variable Speed Zone Start in Mio, Michigan - Photo 1
Toro Heavy Duty 21 in. Kohler CV173 Self-Propel 2-Bail Variable Speed Zone Start in Mio, Michigan - Photo 2
Toro Heavy Duty 21 in. Kohler CV173 Self-Propel 2-Bail Variable Speed Zone Start in Mio, Michigan - Photo 3
Toro Heavy Duty 21 in. Kohler CV173 Self-Propel 2-Bail Variable Speed Zone Start in Mio, Michigan - Photo 4
Toro Heavy Duty 21 in. Kohler CV173 Self-Propel 2-Bail Variable Speed Zone Start in Mio, Michigan - Photo 5
Toro Heavy Duty 21 in. Kohler CV173 Self-Propel 2-Bail Variable Speed Zone Start in Mio, Michigan - Photo 6
Toro Heavy Duty 21 in. Kohler CV173 Self-Propel 2-Bail Variable Speed Zone Start in Mio, Michigan - Photo 7
Toro Heavy Duty 21 in. Kohler CV173 Self-Propel 2-Bail Variable Speed Zone Start in Mio, Michigan - Photo 8
Toro Heavy Duty 21 in. Kohler CV173 Self-Propel 2-Bail Variable Speed Zone Start in Mio, Michigan - Photo 9
Toro Heavy Duty 21 in. Kohler CV173 Self-Propel 2-Bail Variable Speed Zone Start in Mio, Michigan - Photo 10
Previous
Next
Request More Information Print Brochure
Apply for Financing
Calculate Payment
Insurance Quote

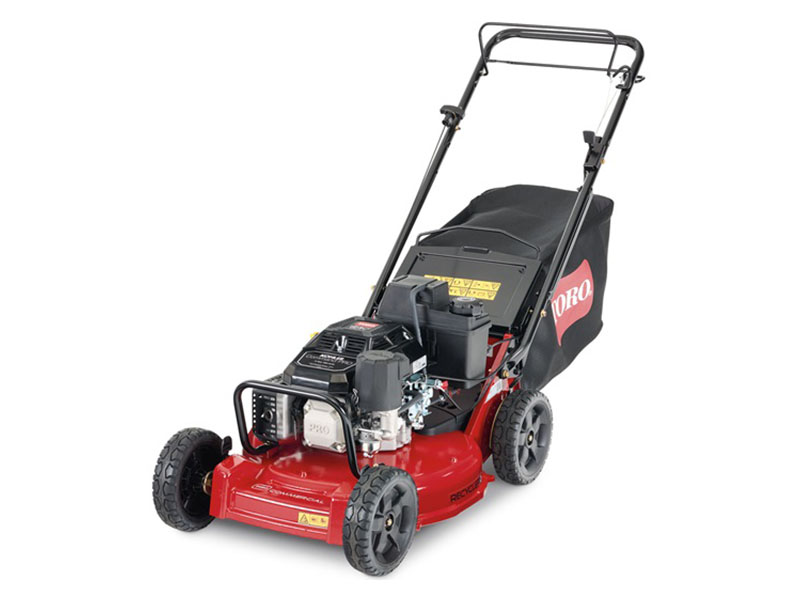

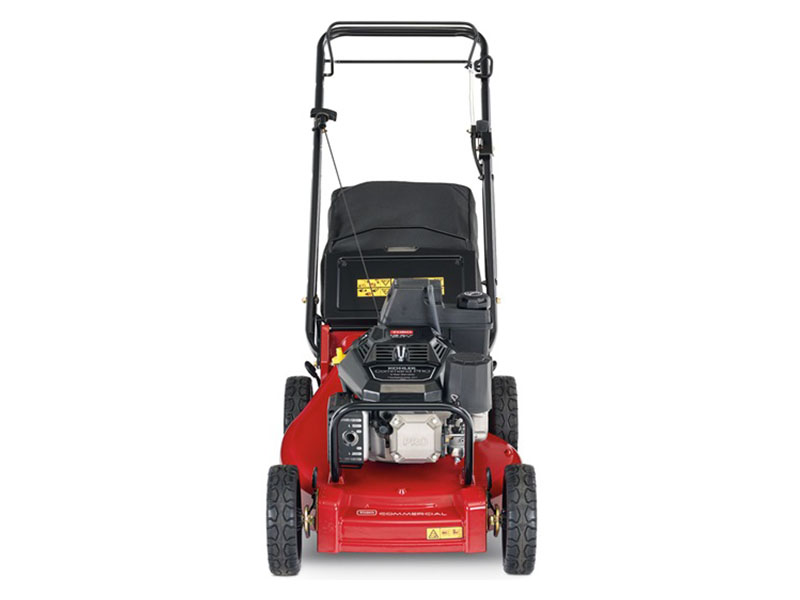

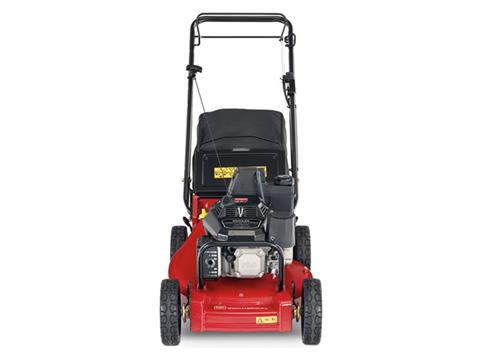

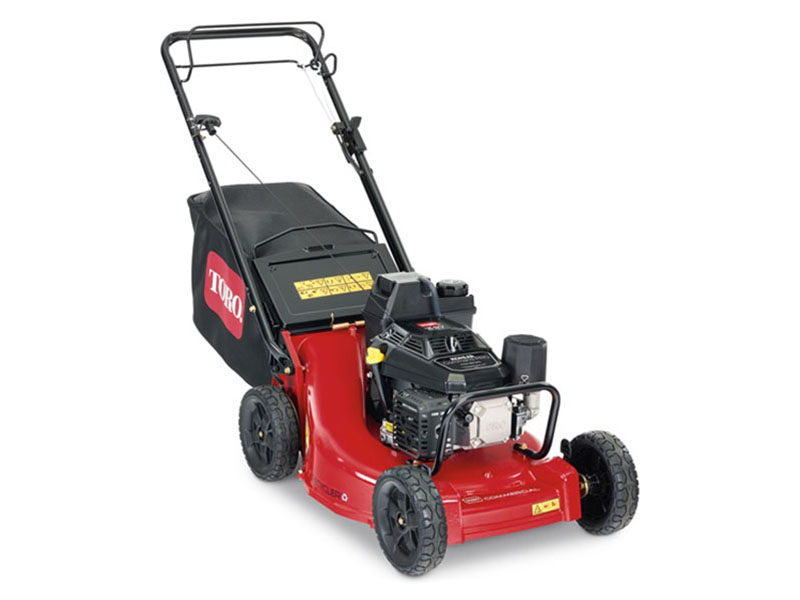

This Toro 21 in. (53 cm) self propel, heavy duty walk behind mower features a premium commercial-grade Kohler® CV173 engine with zone start and a sealed, maintenance-free transmission. The 2-bail control system makes it easy to vary the speed where you need it.

For the best productivity, it has a Recycler cutting deck and the large, easy-empty bagging system.

The deck is made of corrosion-resistant aluminum alloy and cables are also protected with steel cable guards mounted to the handle bar. It's everything you want in a heavy-duty walk behind.

Request More Information

By pressing SUBMIT, you agree that DX1, LLC and Klimmek Sales & Service may call/text you at the number provided, for either informational or marketing purposes, using an automatic telephone dialing system or pre-recorded/artificial voices. Msg/data rates may apply. You don’t need to consent as a condition of any purchase & you may revoke your consent at any time. You also agree to our Privacy Statement & Terms of Use.

Toro Heavy Duty 21 in. Kohler CV173 Self-Propel 2-Bail Variable Speed Zone Start

Condition
New
Category
Lawn Mowers
Model Type
Heavy Duty
Model Code
22287
Color
Red

Features

  • COMMERCIAL-GRADE KOHLER ENGINE: Powered by a commercial-grade Kohler CV173 engine and 1 gallon fuel tank.

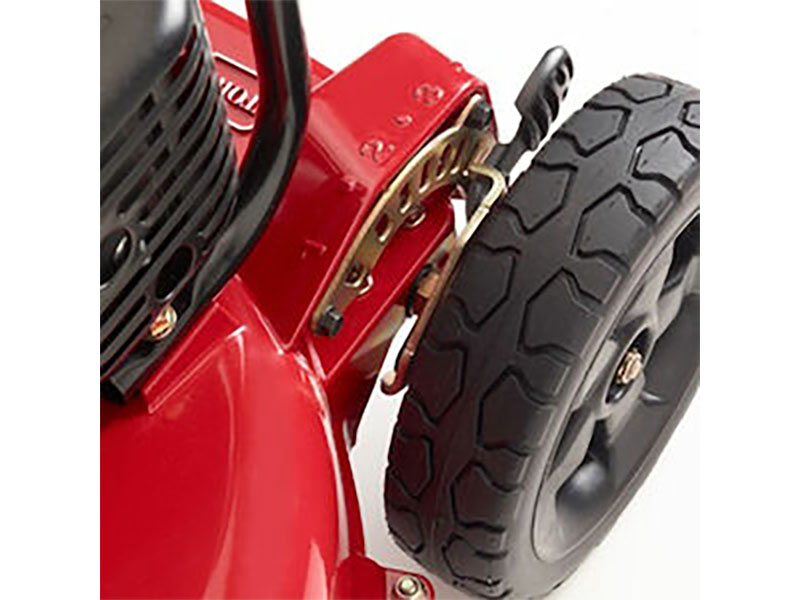

  • 4-POINT HEIGHT OF CUT: The robust design provides maximum life and durability. Front spring arms are contained within the wheels for ultimate protection. Cut in more conditions with heights ranging from 1" to 4.5"

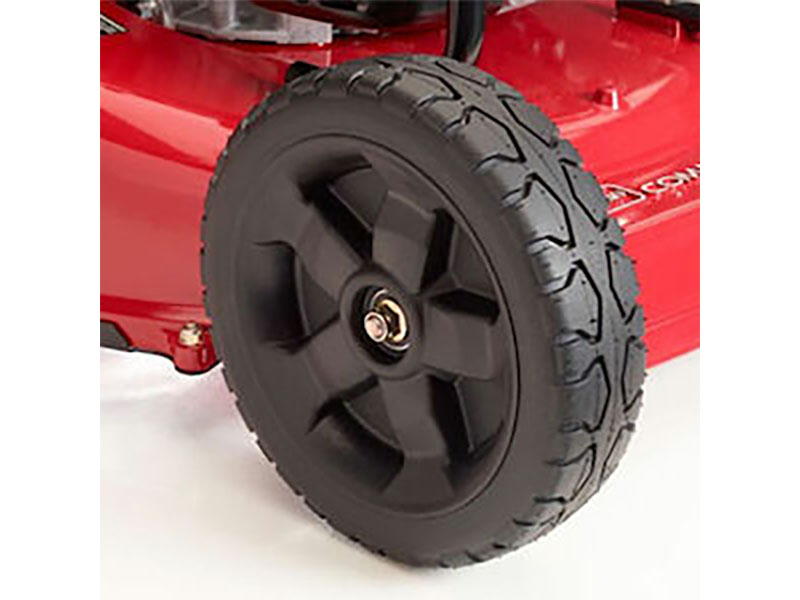

  • COMMERCIAL-GRADE WHEELS: Tough co-polymer wheels feature precision ball bearings for long life with less downtime and lower replacement costs. These large 9" x 2" wheels also provide a light footprint that is easy on the turf.

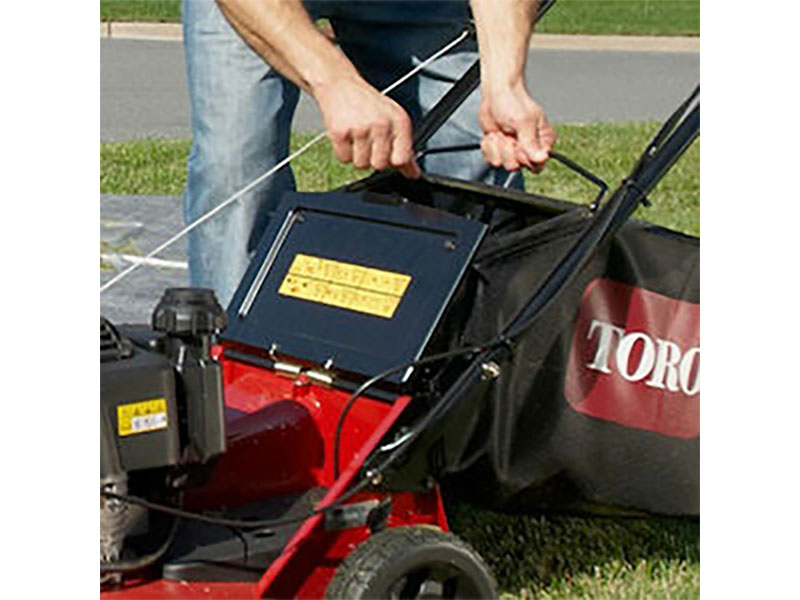

  • EASY EMPTY BAG: The large 2.1 bushel bag features an easy-empty design, making quick work of clipping disposal.

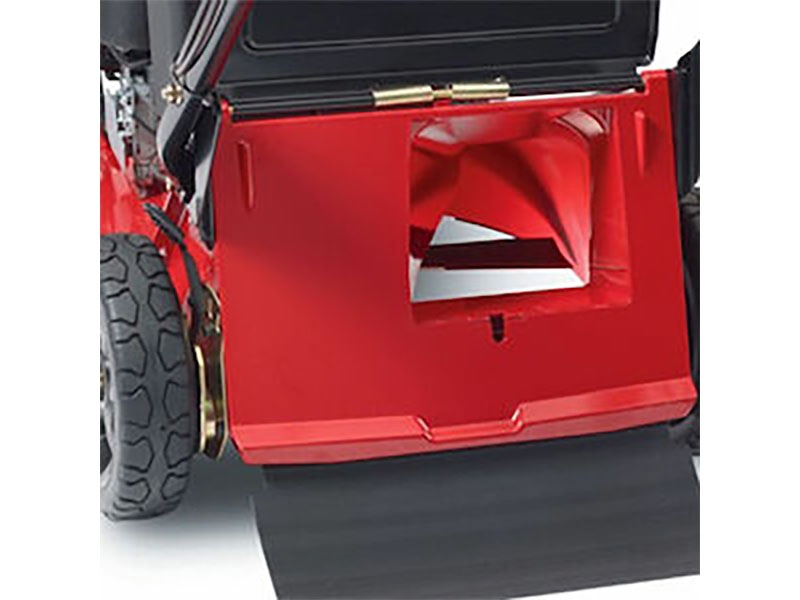

  • REAR BAGGING SYSTEM: The wide opening and ramped profile of the tunnel maximize bag fill.

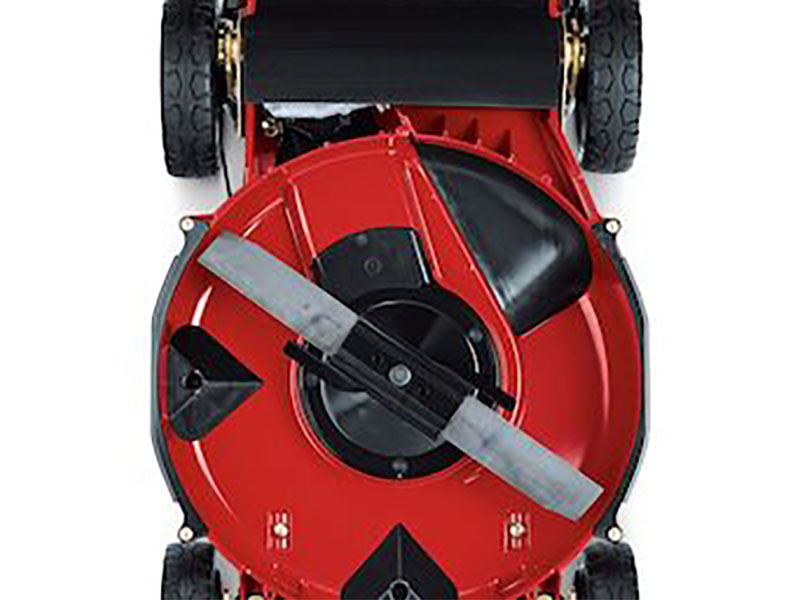

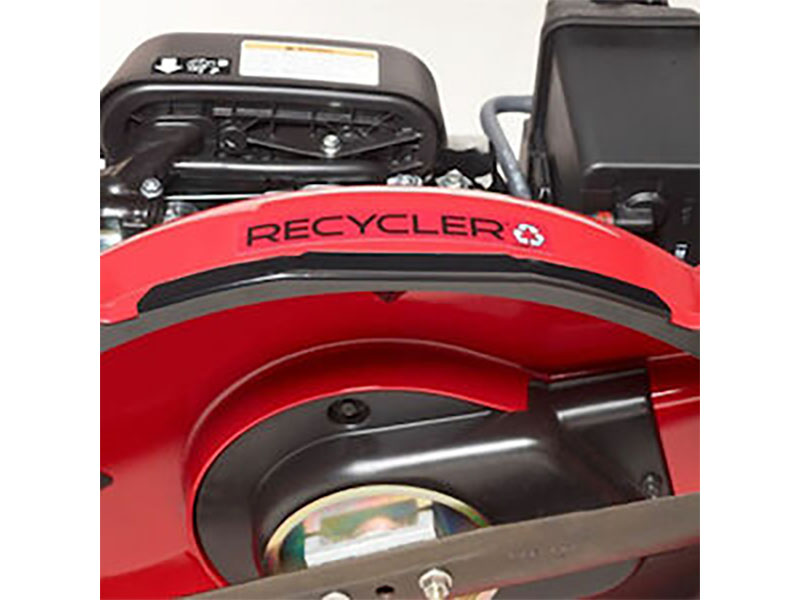

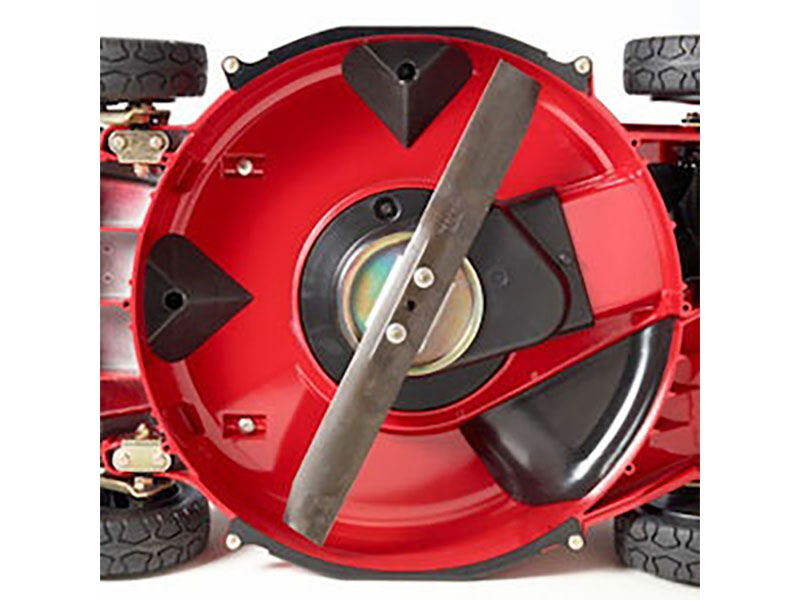

  • RECYCLER® CUTTING SYSTEM: This patented cutting system cuts and recuts grass clippings into fine mulch and directs them deep into the turf to provide a "just bagged" appearance.
  • STEEL DECK WEAR PLATE: Extend the life of your mowing deck with replaceable steel wear plates that protect against bottom and side impacts. (Replacement wear plate part # 125-1047-03)
  • CRANKSHAFT PROTECTOR: The crankshaft protector provides support to prevent damage from blade impact.
  • HORIZON360® BUSINESS MANAGEMENT SOFTWARE: Managing and growing your business is hard work. Using a business management software system shouldn't make it harder. That is why we built Horizon360. If you can type and point/click a mouse, you have all the skills required.
  • Cut in more conditions with heights ranging from 1 in. to 4.5 in.
  • Large 9 in. x 2 in. lightweight co-polymer wheels provide a light footprint that is easy on turf.
  • Designed for durability, featuring a tubular engine guard, replaceable steel deck wear plates and steel cable routing guards.

General Information

Manufacturer
Toro
Model
Heavy Duty 21 in. Kohler CV173 Self-Propel 2-Bail Variable Speed Zone Start
Model Code
22287
Color
Red

Drivetrain

Transmission/Drive

Drive system - Self-propelled

Transmission - Variable speed rear wheel drive

Self propel system - Variable speed

Travel Speed
Forward Ground / Transport - Up to 4.2 mph (6.7 kph)
Wheels/Tires
Tires - 9 x 2 in. (22.8 x 5.1 cm) rubber

Engine

Engine Make
Kohler®
Engine Model
CV173
Starter
Pull cord
Lubrication
Splash
Fuel Type
Gasoline
Fuel Capacity
0.5 gal. (1.9 l / 2 qt.)

Measurements

Length
Box dimensions - 43.5 in. (110.5 cm)
Width
Box dimensions - 23.5 in. (59.7 cm)
Height
Box dimensions - 20.25 in. (51.4 cm)
Weight
124 lb. (56.2 kg)
Mowing Height Range
1.0 - 4.5 in. (2.5 - 11.4 cm)
Mowing Width
21 in. (53 cm)

Operational

Steering
Controls - 2-bail
Deck Construction

Design - Recycler cutting system / rear bagging system

Material - Die cast aluminum alloy

Blades

Design - 0.135 in. (0.343 cm) thick steel

Engagement - Zone Start

Number of blades - 1

Blade Tip Speed
18,000 ft. / min. (5,486 m. / min.)
Mulching
Standard
Bagger

Standard

Capacity - 2.1 bu.

Other

Includes

Crankshaft - 1 in. (25 mm) with steel protector

Product type - Walk behind mowers

Product use - Commercial

Warranty

1 year limited unit

3 year limited engine

See your Toro dealer for warranty details.
