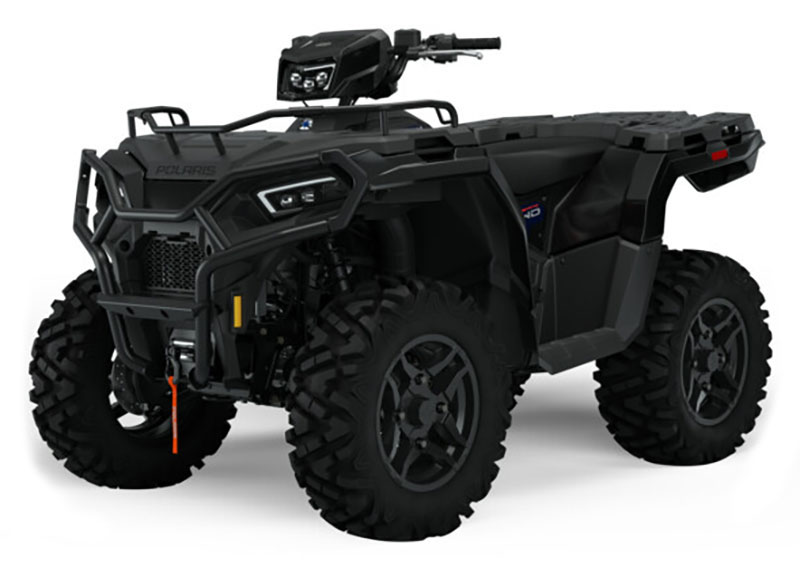

2024 Polaris Sportsman 570 Trail

Onyx Black • New ATVs

2024 Polaris Sportsman 570 Trail in Mio, Michigan
Previous
Next
2024 Polaris Sportsman 570 Trail in Mio, Michigan
Previous
Next
Request More Information Print Brochure
Apply for Financing
Calculate Payment
Schedule a Test Ride Insurance Quote
TASK TO TRAIL VERSATILITY

BETTER THAN EVER

Delivering performance, reliability, and legendary ride and handling for added comfort from task to trail.

Request More Information

By pressing SUBMIT, you agree that DX1, LLC and Klimmek Sales & Service may call/text you at the number provided, for either informational or marketing purposes, using an automatic telephone dialing system or pre-recorded/artificial voices. Msg/data rates may apply. You don’t need to consent as a condition of any purchase & you may revoke your consent at any time. You also agree to our Privacy Statement & Terms of Use.

2024 Polaris Sportsman 570 Trail

Condition
New
Category
ATVs
Model Type
Sportsman 570
Model Code
A24SHY57AL
Color
Onyx Black

Smooth

  • SUSPENSION: Independent rear suspension delivers more traction and helps you ride over even bigger obstacles.
  • ON-DEMAND AWD: Polaris On-Demand AWD delivers instant power when the slightest wheel spin is detected.
  • BEST CLEARANCE: Equipped with 11.5" of ground clearance to help you travel smoothly over rough terrain.
  • PLUSH TRAVEL: Enjoy a smooth ride on the trail with 9.5" of rear travel.
  • Legendary Sportsman suspension delivers the smoothest ride to absorb bumps of all sizes.

Strong

  • 44 HORSEPOWER: Even more power so you can work harder and let it rip on the trail.
  • 1,350 LB. TOWING: Get more done with confidence thanks to a work-ready towing capacity.
  • 2,500 LB. WINCH: Pull more weight on the job, or remove obstacles on the trail with a Polaris HD Winch (Trail only).
  • UPGRADED CLUTCH SEALING: Take on more trails with confidence with improved clutch airflow to help keep water out.
  • IMPROVED FIT AND FINISH: New shifter close-off and better seat fitment providing overall improved showroom appeal.
  • Relentless, job-ready features for the daily grind.

Versatile

  • EASE OF USE: We set the bar with industry firsts like single-lever braking, automatic CVTs, automatic engaging AWD and integrated EBS for the most seamless ride.
  • MOST STORAGE: Stash your tools and supplies with a best-in-class 5-gallons of integrated storage - all secure and easy to reach.
  • Best-in-class integrated storage and smart features for long days out. Plus, you can customize for your work or play needs with a wide selection of accessories.

General Information

Manufacturer
Polaris
Model Year
2024
Model
Sportsman 570 Trail
Model Code
A24SHY57AL
Color
Onyx Black

Brakes/Wheels/Tires

Brakes

Front / Rear - Single Lever 3-Wheel Hydraulic Disc with Hydraulic Rear Foot Brake

Parking - Park In-Transmission / Lockable Hand Lever

Engine Braking System (EBS) - Equipped

Active Descent Control - Equipped

Wheels
14 in. (35.6 cm) Aluminum
Tires

Front - 26 x 8-14; Duro

Rear - 26 x 10-14: Duro

Dimensions

Length
Overall - 83 in. (210.8 cm)
Height
Overall - 47 in. (119.4 cm)
Width
Overall - 48 in. (121.9 cm)
Weight
Estimated Dry - 873 lb. (396 kg)
Ground Clearance
11.5 in. (29 cm)
Wheelbase
50.5 in. (128.3 cm)
Seat Height
33.25 in. (84.5 cm)

Drivetrain

Transmission
Automatic PVT P / R / N / L / H In-line Shifting
Drive System
4x4
Drive
One Touch On-Demand AWD / 2WD

Electrical

Battery
340 CCA
Instrumentation
All Digital Gauge, Speedometer, Odometer, Tachometer, Two Tripmeters, Hour Meter, Gear Indicator, Fuel Gauge, AWD Indicator, Volt Meter, Coolant Temperature, Hi-Temp Light
Lighting
High Output LED POD High Beam, High Output LED Low Beam Headlights, Dual LED Brake lights / Taillights

Engine

Engine
ProStar 4-Stroke DOHC
Cooling
Liquid
Cylinders
Single
Horsepower
44 hp
Displacement
567 cc
Fuel System
Electronic Fuel Injection
Fuel Capacity
4.5 gal. (17 l)

Operational

Suspension

Front - Sealed Arched Dual A-Arm 8.9 in. (22.6 cm) Travel

Rear - Sealed Dual A-Arm, IRS 9.5 in. (24.1 cm) Travel

Steering
Electronic Power - Multi Select EPS
Seating
1 Person Capacity
Hitch
Standard 1.25 in. (3.2 cm) Receiver
Towing Capacity
1,350 lb. (612 kg)
Load Capacity

Front Rack - 90 lb. (40.8 kg)

Rear Rack - 180 lb. (81.6 kg)

Cargo System - Lock & Ride Compatible 5 gal. (18.9 l) Front Dry Storage

Capacity
Payload - 485 lb. (220 kg)

Other

Additional Colors

Onyx Black

Electric Blue

Includes
Front Trail Bumper, 2,500 lb. Polaris HD Winch, 12 Volt Power Plug, Pre-Wired for Hand & Thumb Warmers, In Pod Battery Charger, Painted Plastics, Front and Rear A-Arm Guards
